The wall machine uses its high-tech digital printing technology to print design patterns on the wall, which can present clear, bright and lifelike images. The fully automatic operation mode reduces labor costs and can complete the entire wall decoration in one printing, improving the efficiency. In terms of market application, wall machines are not only used for home decoration, but also widely used in indoor and outdoor decoration in commercial places, hotels, restaurants, offices, galleries, etc. Its environmentally friendly materials and unique design effects have won the favor of people from all walks of life. In general, wall machines have become the preferred equipment for modern wall decoration due to their many advantages such as simple operation, fast printing, realistic effects, good durability, and strong environmental protection.
The advanced spraying system of the wall machine ensures even distribution of the coating, whether it is a curve or a flat surface, it can be perfectly presented. Through the efficient operation of the wall machine, the construction cycle is greatly shortened, while ensuring the consistency and accuracy of the painting quality. The application of the wall machine not only improves construction efficiency and quality, but also demonstrates the huge potential of modern technology in the construction industry.injecting new vitality and charm into the city's architectural style.
| Printing Software | Genuine professional printing software | ||||||||
| Using Ink | Special environmental protection organic water-based ink (waterproof, anti stripping) | ||||||||
| Control Mode | Wired / wireless printing | ||||||||

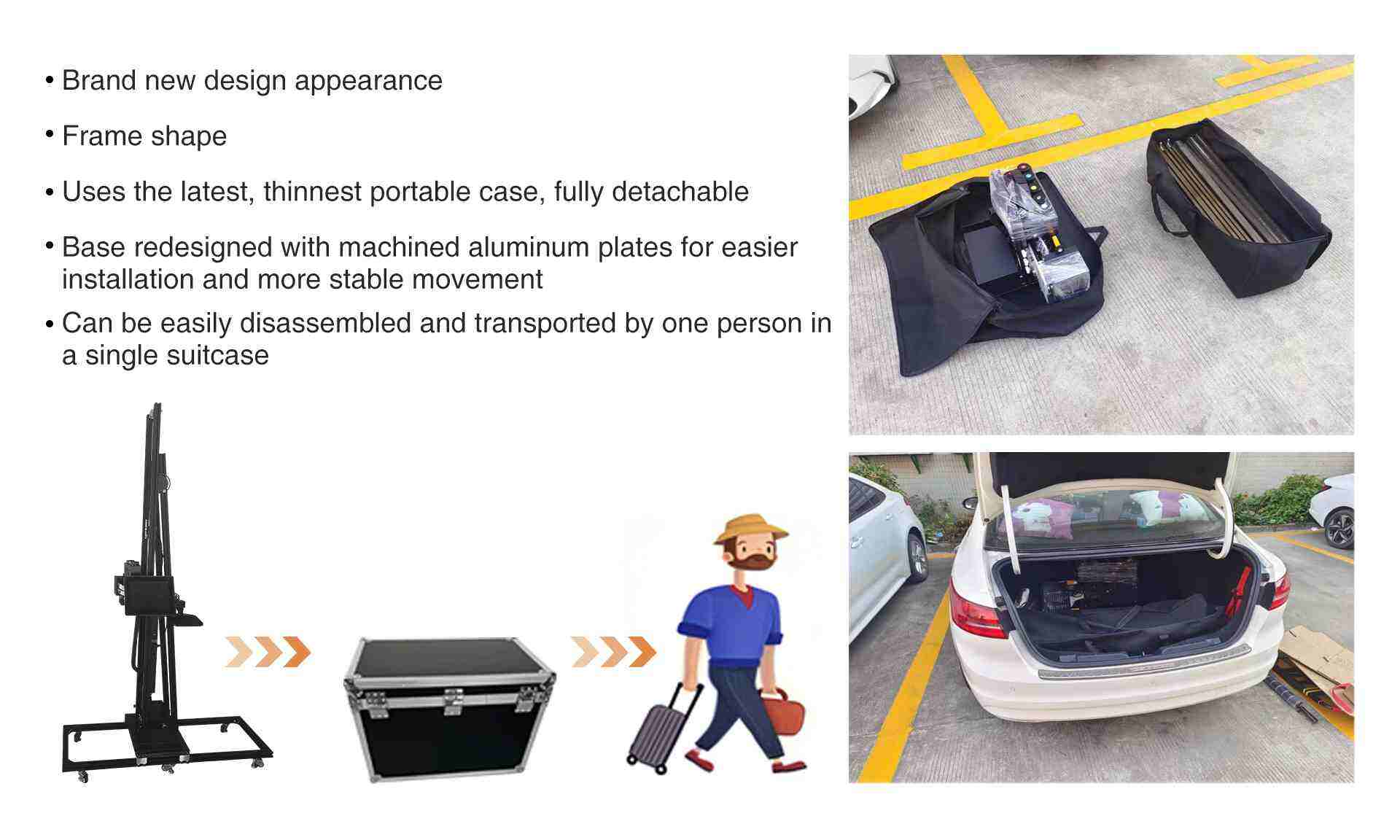

| Transportation | foldable) | ||||||||
| Power Consumption | No load 20W, maximum 250w | ||||||||
| Surface Tracking | Hyperbolic banner sensor, up and down bidirectional induction | ||||||||
| Ink Supply System | Positive pressure system single color single supply, 4-color ink bin one body | ||||||||
| Print Size | 2.5Height × width, more than 2 meters can be seamless splicing | ||||||||
| Construction Noise | Standby < 20db, drawing < 70db | ||||||||
| Supporting Pictures | Photos taken by mobile phone / camera and Internet | ||||||||
| Power Requirements | Household electricity: 220 VAC or 380 VAC | ||||||||
| Applicable Media | White wall, ceramic tile, glass, metal, acrylic, paper, etc | ||||||||
| Format of National Film | Include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF | ||||||||
| Color Drawing Technology | Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery technology for construction interruption | ||||||||
| Print Resolution | 360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi | ||||||||
| Operating Environment | -20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state | ||||||||
| Storage Environment | -21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state | ||||||||
| Operating Platform | Windows xP/7/8/9/10 | ||||||||
| Certification Qualification | Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification | ||||||||
| Printing Speed | PASS | M2 / h (M '/ h) | |||||||
| Fast Mode | A | 15 | |||||||
| Production Mode | B | 10 | |||||||
| Quality Model | C | 7 | |||||||
| HD Mode | D | 5 | |||||||

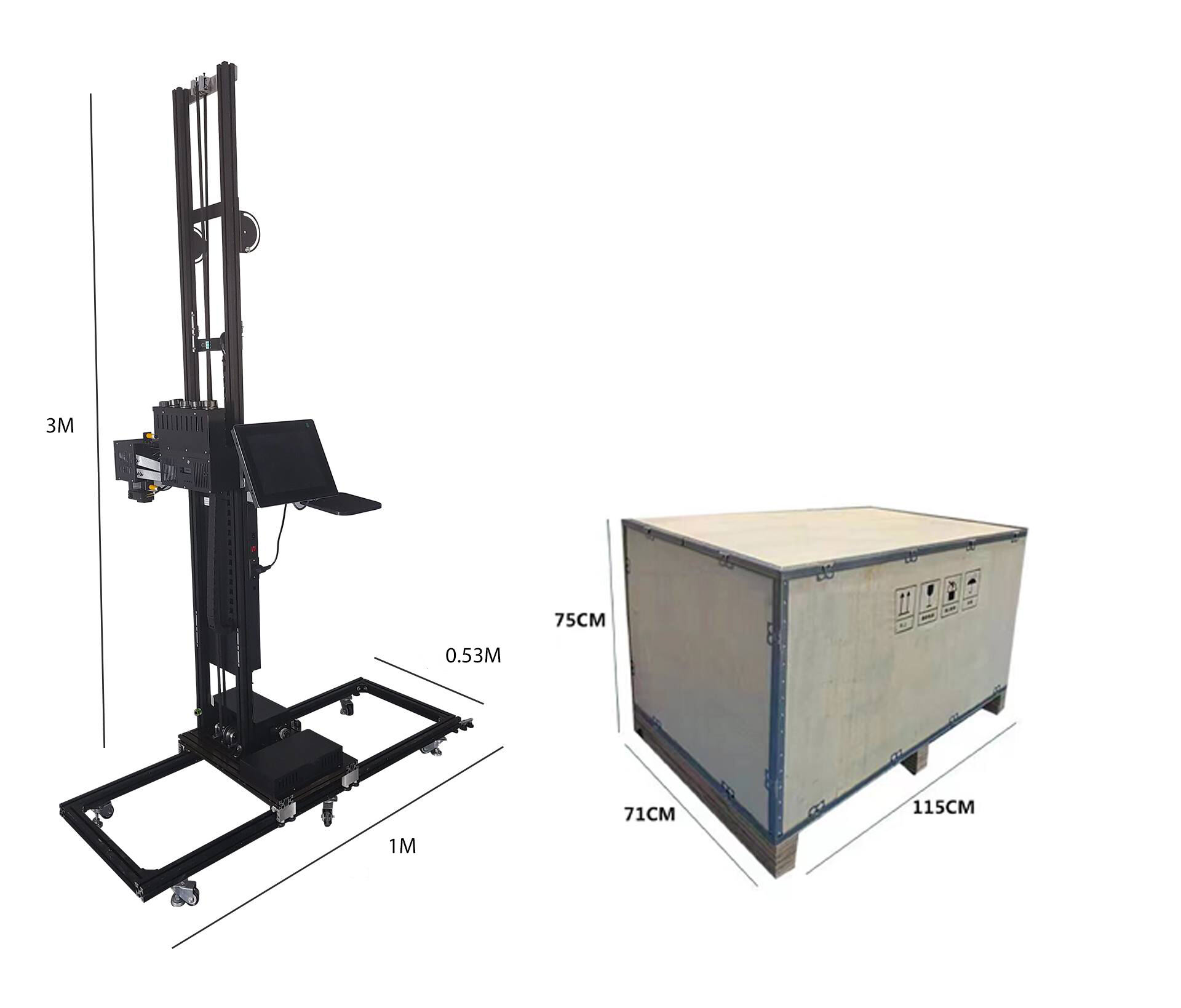

| External Dimension | Machine scale mm); length 700* width 300* height 2600 | Package size (mm): length 800*width 460*height 2700 | |||||||
| Machine Weight | Machine 60kg (fuselage 30kg + 3 guide rails 30kg) | Gross weight 115KG in wooden case | |||||||

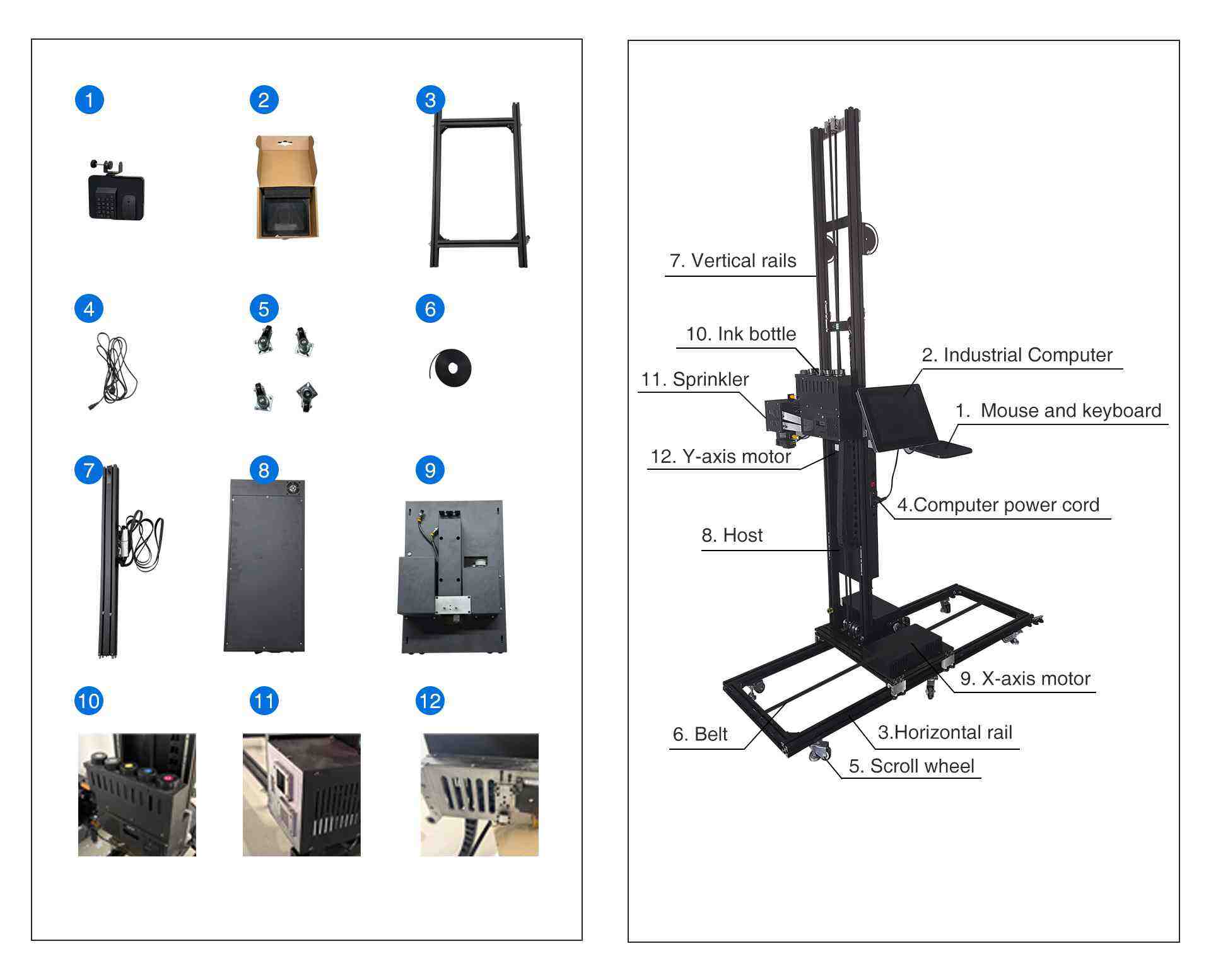

| Key Components | |||||||||

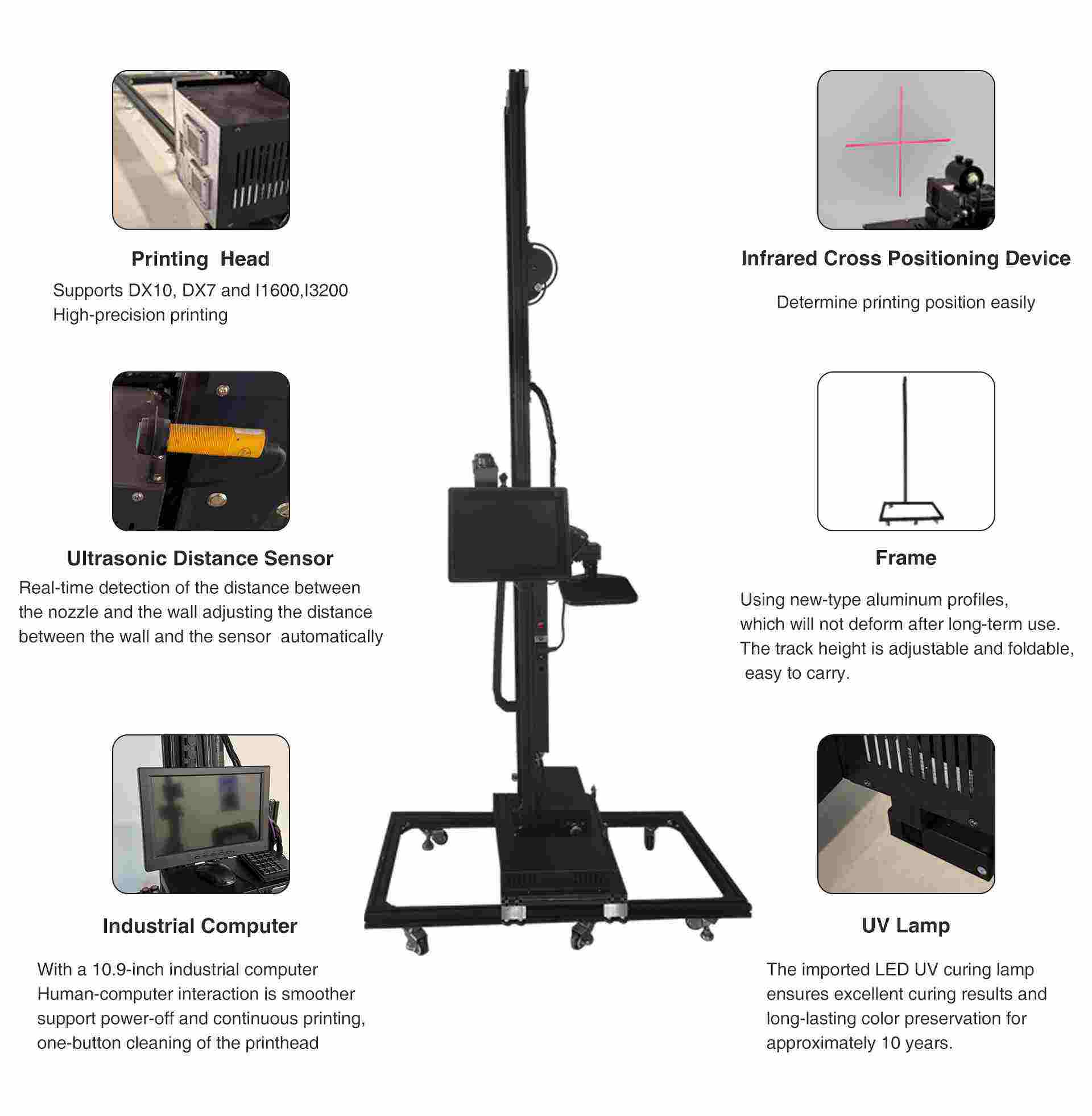

| Nozzle Specification | Epson 10 generation high precision printing nozzle 2 | Electric machinery | 3 Imported intelligent servo motor + reducer | ||||||
| Main Board | 8Core high speed CPU, 4GB memory, high speed USB 1o | Wall detection | 2 Nano distance detectors | ||||||
| Level | Imported precision level | Power failure alarm | Real time power failure alarm system | ||||||
| UPS Power Supply | Super uninterruptible power supply with 3 hours of power failure | Laser positioning Laser positioning | Precise infrared laser positioning system | ||||||

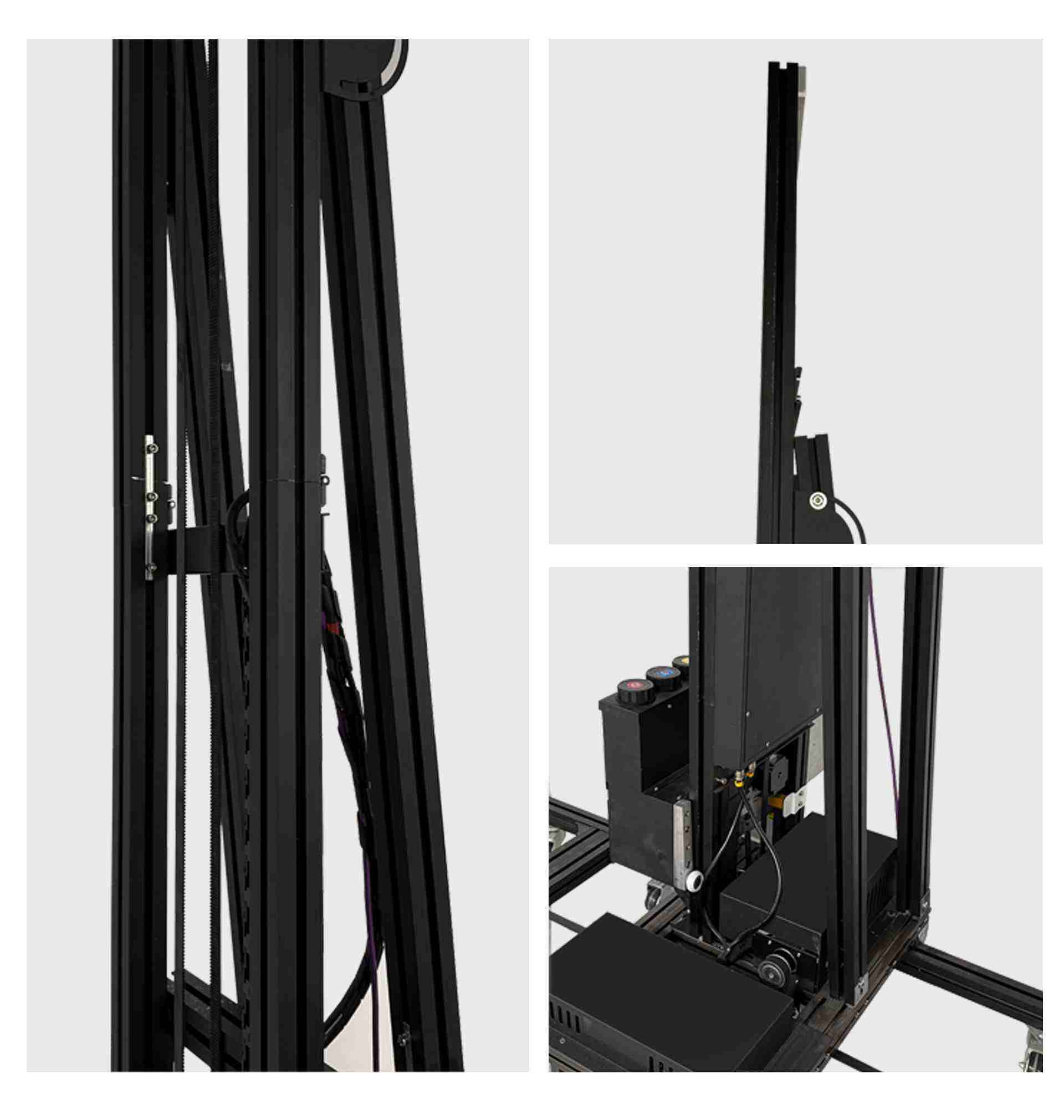

| Shaft Guide | High strength precision railway track, 4 sections, 1.5m, 6m in total | Shaft guide | Imported linear drive module | ||||||
| Ink Supply Technology | Positive pressure system ink supply, need to draw ink | Gift Gallery | Free 2T Library | ||||||
| Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail. | |||||||||
1.Canbe applied to a variety of materials wall, for example white wall, latex paint wall, shell powder wall, ceramic tile, glass KT board.
2.Supports printing color ink and white ink at the same time.
3.The number and type of printing nozzles are optional, different printing speed and printing accuracy.
4. Print height can be customized, unlimited length.

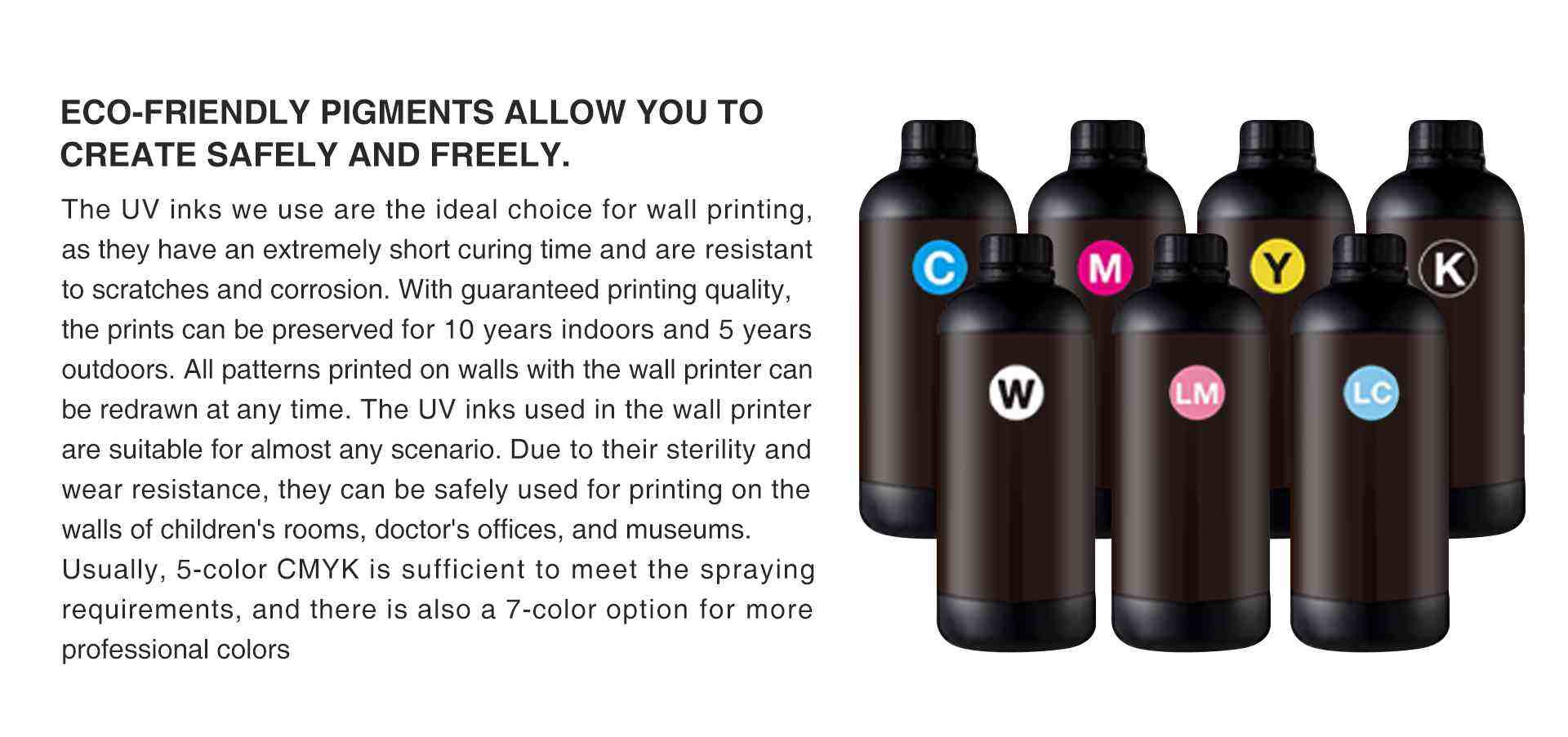

One set of ink, 5 colors, red yellow blue black white,each color 500ml.
One set of uv ink costs 95usd, which can print 150 square meters. so the average of ink consumption 16.7ml/sqm. The cost is 0.63usd/sqm.
One set of water based ink costs 75usd, which can print 150 square meters. So the cost is 0.5usd/sqm.
3D wall printer imported nozzle.Three different nozzles are available.
DX10 lifespan is about 20,000 square meters printing.
DX7 lifespan is about 30,000 square meters printing.
4720 lifespan is about 40,000 square.
